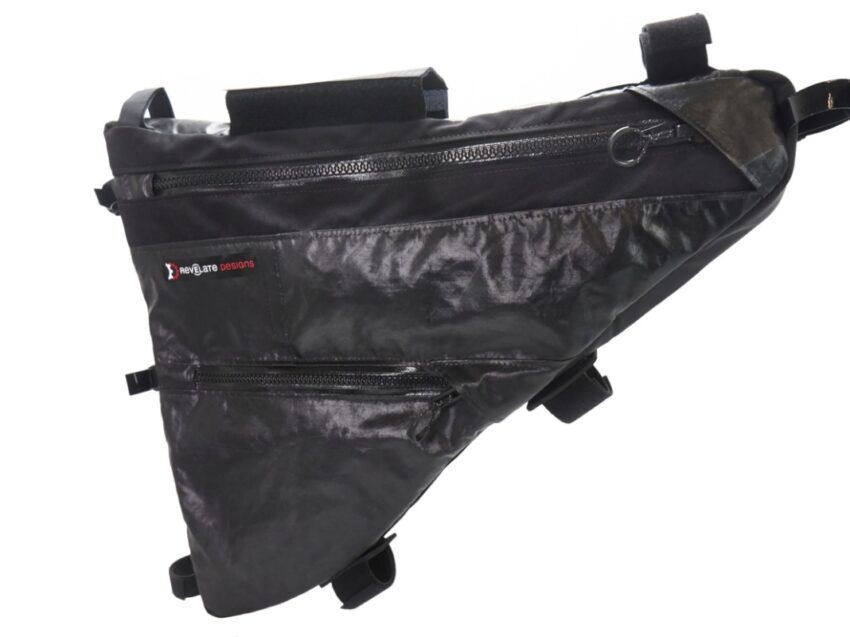

If miles upon miles of open dirt roads are your calling, the Ripio® frame bag will haul your stuff on your next bikepacking or bike touring trip. The Ripio is the full-frame solution for your road, gravel, or touring bike. With geometry optimized for frames with tall top tubes & head tubes, the Ripio fits a huge range of bikes and is packed with features that make use of the larger frame space road geometry provides.
The Ripio comes in four sizes. Dimensions shown should be interpreted as a minimum fit size. As a rule of thumb – size down if on the fence. Online schematics of bike geometry typically do not detail the measurements necessary to determine fit. We recommend an old fashion ruler for this part. Click here for a Printable Full Size PDF Pattern.
| SM | MD | LG | XL | |
|---|---|---|---|---|
| A | 17.50 in | 19.25 in | 20.50 in | 21.50 in |
| B | 1.00 in | 1.25 in | 2.75 in | 4.50 in |
| C | 17.75 in | 18.25 in | 19.00 in | 21.00 in |
| D | 3.00 in | 4.25 in | 4.00 in | 3.00 in |
| E | 13.5 in | 14.75 in | 17.00 in | 19.50 in |
| SM | MD | LG | XL | |
|---|---|---|---|---|
| A | 445 mm | 489 mm | 521 mm | 546 mm |
| B | 25 mm | 32 mm | 70 mm | 114 mm |
| C | 451 mm | 464 mm | 483 mm | 533 mm |
| D | 76 mm | 108 mm | 102 mm | 76 mm |
| E | 343 mm | 375 mm | 432 mm | 495 mm |
| Weight (oz) | Volume (in³) | |
|---|---|---|
| SM | 13 oz | 305 in³ |
| MD | 14 oz | 385 in³ |
| LG | 16 oz | 470 in³ |
| XL | 17.4 oz | 550 in³ |
| Weight (g) | Volume (L) | |
|---|---|---|
| SM | 364 g | 5 L |
| MD | 397 g | 6.3 L |
| LG | 454 g | 7.7 L |
| XL | 493 g | 9 L |
Materials: Dimension Polyant VX-21 with abrasion resistant finish; TPU laminated stretch woven Cordura; 1050 denier domestic ballistics nylon; 420 denier diamond ripstop lining with full perimeter foam padded tube sections.
Revelate Designs –
I converted my Ripio to full bolt on since it wasn’t offered in a B/O version. Instead of attaching it the way other bolt on bags work, i designed an internal frame system out of lexan(updated to carbon fiber). So instead of all the bags weight concentrated on the very tiny area the bolt had bolt head has i wad able to spread that weight out and mRead more about review stating 2.5 year review update(bolt on)ove it onto the much greater surface area my internal frame provides. I also keep it dry using a water proofing spray based on silicone. If you are interested in seeing how i designed my internal frame and converted to full bolt on, send me an email efx noise @ gmail . com. After 2.5 years the bag and its new frame system have held up incredibly well. The frame had taken all the stress from the bags weight and no signsof fatigue anywhere exists.
